OpenKM 1.5.9 document preview doesn't work

[devanand_s]

Hi,
I am using OKM 1.5.9 on Windows 2003x64.

I get the following error in server.log when I try to preview PDF file:

Code: Select all

2012-03-08 15:34:58,275 WARN  [com.openkm.util.ExecutionUtils] Abnormal program termination: 1
2012-03-08 15:34:58,275 WARN  [com.openkm.util.ExecutionUtils] STDERR:
2012-03-08 15:34:58,275 ERROR [com.openkm.servlet.frontend.ConverterServlet]
com.openkm.core.ConversionException:
	at com.openkm.util.DocConverter.pdf2swf(DocConverter.java:528)
	at com.openkm.servlet.frontend.ConverterServlet.toSWF(ConverterServlet.java:223)
	at com.openkm.servlet.frontend.ConverterServlet.service(ConverterServlet.java:106)
	at javax.servlet.http.HttpServlet.service(HttpServlet.java:803)
	at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:290)
	at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:206)
	at org.jboss.web.tomcat.filters.ReplyHeaderFilter.doFilter(ReplyHeaderFilter.java:96)
	at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:235)
	at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:206)
	at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:230)
	at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:175)
	at org.jboss.web.tomcat.security.SecurityAssociationValve.invoke(SecurityAssociationValve.java:182)
	at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:524)
	at org.jboss.web.tomcat.security.JaccContextValve.invoke(JaccContextValve.java:84)
	at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:127)
	at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:102)
	at org.jboss.web.tomcat.service.jca.CachedConnectionValve.invoke(CachedConnectionValve.java:157)
	at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:109)
	at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:262)
	at org.apache.coyote.http11.Http11Processor.process(Http11Processor.java:844)
	at org.apache.coyote.http11.Http11Protocol$Http11ConnectionHandler.process(Http11Protocol.java:583)
	at org.apache.tomcat.util.net.JIoEndpoint$Worker.run(JIoEndpoint.java:446)
	at java.lang.Thread.run(Unknown Source)

Can someone let me know what is the issue.

[jllort]

As is explained in migration guide http://wiki.openkm.com/index.php/Migrat ... 8_to_5.1.9 the pdf2swf parameter now is configured as

Code: Select all

/usr/bin/pdf2swf" to "/usr/bin/pdf2swf -T 9 -f ${fileIn} -o ${fileOut}

[devanand_s]

Hi,
Yes I verified your statement and the migration guide.
It is given for Linux, can you please let me know how it is to be done on Windows.

Regards
Dev

[vkasgpta]

credits for this solution go to azizraj at http://forum.openkm.com/viewtopic.php?f=4&t=5798

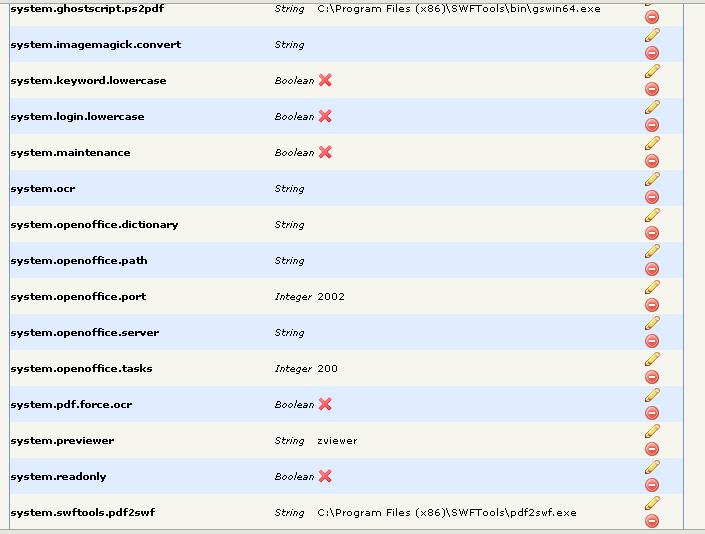

The problem is your path the path in the wiki is not complete. Use this, it worked on mine:
D:\..\pdf2swf.exe ${fileIn} ${fileOut}
where .. is the path to the pdf2swf FOLDER.

this works for pdf files, still figuring out docs and xls...

[devanand_s]

Hi,
Thank you for the responses. It worked for me.

Regards
Dev
