How to call a java class in my workflow?

Post by kouadio »

I created a java class WorkflowLogger according to the following tutorial. In my workflow, being in Eclipse, I do not know how to call the com.openkm.workflow.Workflow.java program so that it can save the workflow information in the database.
I find that it is neither ActionHandler nor TackHandler nor AssignmentHandler.
I remember that I am a novice and I use the virtual machine preinstalled.
Thank you for your help.

jllort
Moderator
Moderator
Posts: 11204
Joined: Fri Dec 21, 2007 11:23 am
Location: Sineu - ( Illes Balears ) - Spain
Contact:

Re: How to call a java class in my workflow?

Post by jllort »

You should watch at least all the videos from this point https://docs.openkm.com/kcenter/view/wf ... ourse.html
In the OpenKM development environment you have the almost samples shown in the videos, check them, there sure the OpenKM API classes are used. Basically you will find them in ActionHandlers is the most common place to use them.

kouadio
Senior Boarder
Senior Boarder
Posts: 73
Joined: Wed Jan 09, 2019 9:26 am

Re: How to call a java class in my workflow?

Post by kouadio »

Hi,
Thank you for assistance.
When I call my java class procedure (<action name"save" class="com.openkm.workflow.WorkflowLogger"></action>), here is the error I get in my file catalinat.log:

Code: Select all

GRAVE [http-nio-0.0.0.0-8080-exec-10] org.jbpm.instantiation.Delegation.instantiate couldn't instantiate delegation class 'com.openkm.workflow.WorkflowLogger'
 java.lang.NullPointerException
Thank you for helping me

jllort
Moderator
Moderator
Posts: 11204
Joined: Fri Dec 21, 2007 11:23 am
Location: Sineu - ( Illes Balears ) - Spain
Contact:

Re: How to call a java class in my workflow?

Post by jllort »

Did you created the WorkflowLogger.java class ? because in the code of OpenKM does not exist
Did you acced in the project ( into the par file the class exist, did you added in the same panel you add forms ). The par file is a zip file ( renamed )

kouadio
Senior Boarder
Senior Boarder
Posts: 73
Joined: Wed Jan 09, 2019 9:26 am

Re: How to call a java class in my workflow?

Post by kouadio »

After downloading another version of "Community development environment", the workflow ran without incident. However, I do not know where the data is stored. I look in the OKM_DB_METADATA_VALUE and OKM_DB_METADATA_TYPE tables but nothing, no data.

jllort
Moderator
Moderator
Posts: 11204
Joined: Fri Dec 21, 2007 11:23 am
Location: Sineu - ( Illes Balears ) - Spain
Contact:

Re: How to call a java class in my workflow?

Post by jllort »

What kind of data ? the workflow data is stored into JBPM_* tables

kouadio
Senior Boarder
Senior Boarder
Posts: 73
Joined: Wed Jan 09, 2019 9:26 am

Re: How to call a java class in my workflow?

Post by kouadio »

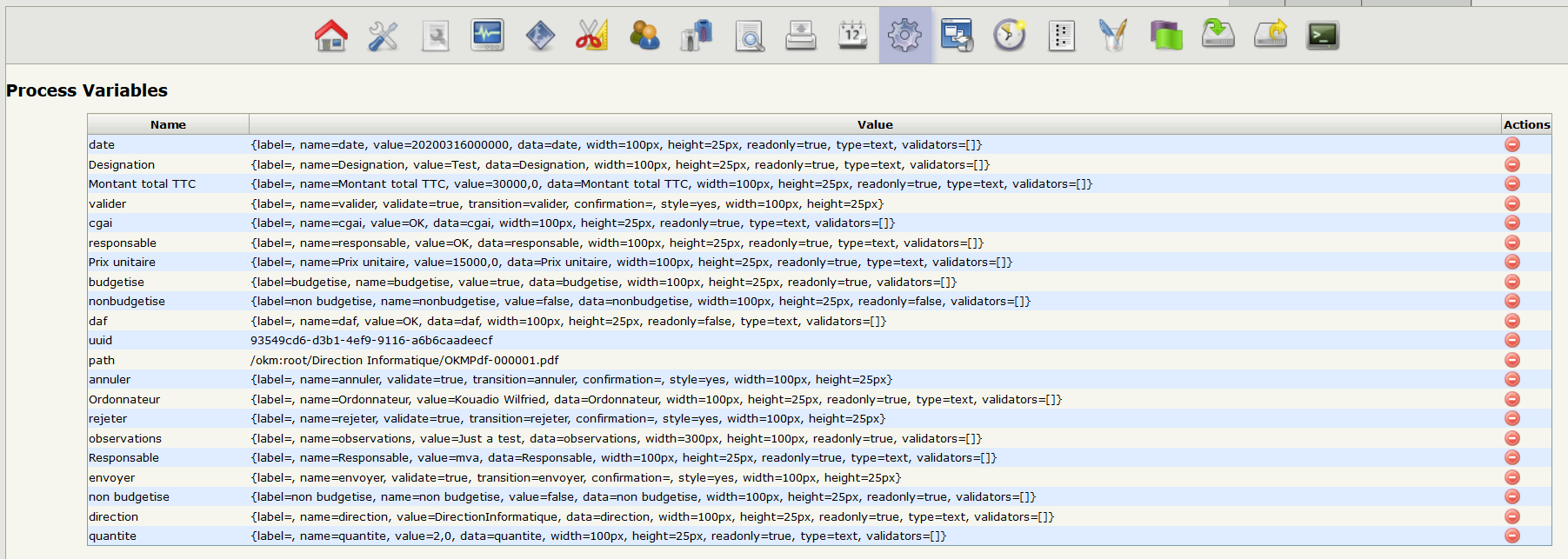

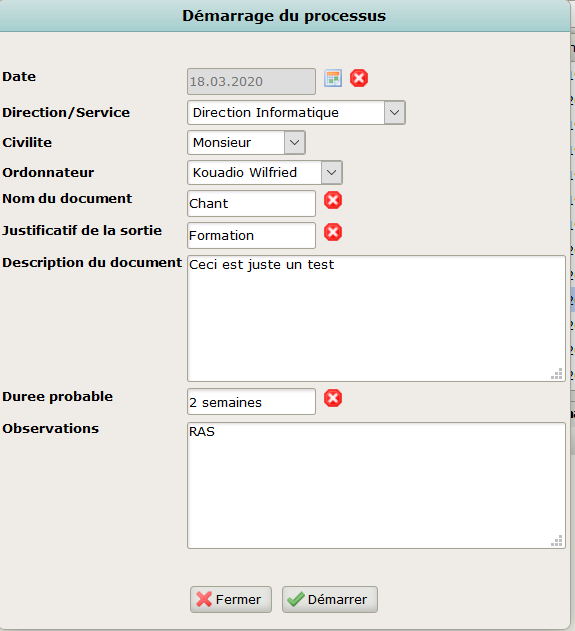

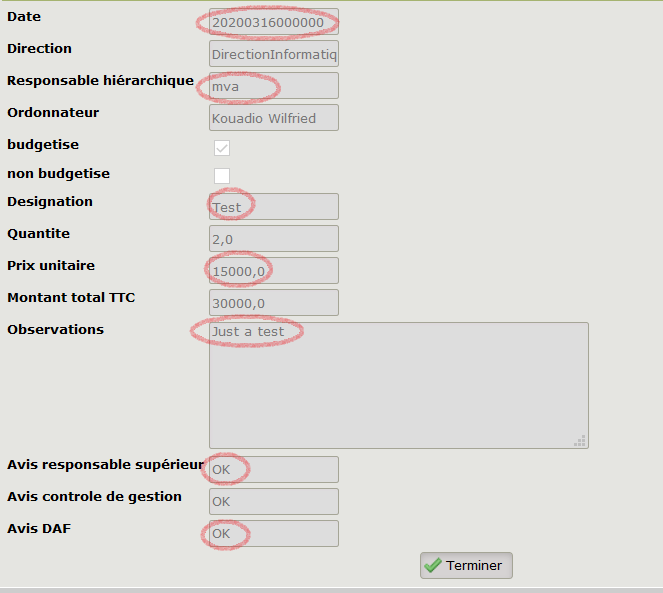

I want the data from my form that was populated in my workflow journey. Here is an extract from my forms.xml file and in attached file a screenshot of the user page and the summary of the data in the administration screen of the workflow. In fact, this is the information I want, but I can't find it in any table in my database.

Code: Select all

<workflow-form task="avis favorable">
    <input label="Date" name="date" data="date" readonly="true" />
    <input name="direction" label="Direction" data="direction" readonly="true"/>
    <input name="Responsable" label="Responsable hiérarchique" data="Responsable" readonly="true"/>
    <input name="Ordonnateur" label="Ordonnateur" data="Ordonnateur" readonly="true"/>

    <checkbox name="budgetise" label="budgetise" data="budgetise" readonly="true"/>
    <checkbox name="non budgetise" label="non budgetise" data="non budgetise" readonly="true"/>
    <input label="Designation" name="Designation" data="Designation" readonly="true" />

    <input label="Quantite" name="quantite" data="quantite" readonly="true" />
    <input label="Prix unitaire" name="Prix unitaire" data="Prix unitaire" readonly="true" />
    <input label="Montant total TTC" name="Montant total TTC" data="Montant total TTC" readonly="true" />

    <textarea label="Observations" name="observations" data="observations" readonly="true" />
    <input label="Avis responsable supérieur" name="responsable" data="responsable" readonly="true" />
    <input label="Avis controle de gestion" name="cgai" data="cgai" readonly="true" />
    <input label="Avis DAF" name="daf" data="daf" readonly="true" />
    <button name="Terminer" label="Terminer" transition="terminer"/>
</workflow-form>
Attachments

jllort
Moderator
Moderator
Posts: 11204
Joined: Fri Dec 21, 2007 11:23 am
Location: Sineu - ( Illes Balears ) - Spain
Contact:

Re: How to call a java class in my workflow?

Post by jllort »

You must collect the data in the form during the workflow transaction and store as metadata. The workflow will not make it automatically do it for you, it is something you must control in your side ( workflow form elements does not have a direct mapping to metadata, because maybe you are interested in mapping single workflow form into several metadata groups )

kouadio
Senior Boarder
Senior Boarder
Posts: 73
Joined: Wed Jan 09, 2019 9:26 am

Re: How to call a java class in my workflow?

Post by kouadio »

Thank you for your concise answer. But how do I do the mapping?

jllort
Moderator
Moderator
Posts: 11204
Joined: Fri Dec 21, 2007 11:23 am
Location: Sineu - ( Illes Balears ) - Spain
Contact:

Re: How to call a java class in my workflow?

Post by jllort »

Is a manual mapping. You got the values in the transaction ( are stored in the context ). Must get the data and store as metadata.

Take a look here https://docs.openkm.com/kcenter/view/wf ... -node.html in your case into the vars are objects of type Input, Select ( FormElements ).

Here the code to import metadata https://docs.openkm.com/kcenter/view/ok ... tiesSimple

kouadio
Senior Boarder
Senior Boarder
Posts: 73
Joined: Wed Jan 09, 2019 9:26 am

Re: How to call a java class in my workflow?

Post by kouadio »

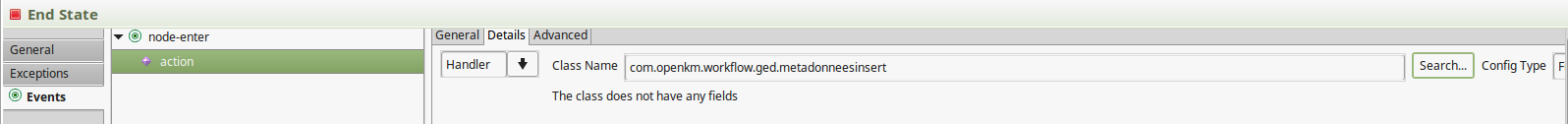

I tell you I'm really null in java. In accordance with your recommendations, here is my configuration which does not work. Really, I don't know how to solve my problem.

Code: Select all

package com.openkm.workflow.ged;

import org.jbpm.graph.def.ActionHandler;
import org.jbpm.graph.exe.ExecutionContext;

import java.util.Calendar;
import java.util.HashMap;
import java.util.Map;

import com.openkm.api.OKMPropertyGroup;
import com.openkm.util.ISO8601;
public class metadonneesinsert implements ActionHandler {

	 /**
	 *
	 */
	private static final long serialVersionUID = 1L;

	public static void main(String[] args) {
        try {
            Map<String, String> properties = new HashMap<>();
            properties.put("okp:BonCommande.direction", "new direction");
            properties.put("okp:BonCommande.civilite", "new civilite");
            properties.put("okp:BonCommande.Ordonnateur", "new Ordonnateur");
            properties.put("okp:BonCommande.document", "new document");
            properties.put("okp:BonCommande.justificatif", "new justificatif");
            properties.put("okp:BonCommande.description", "new description");
            properties.put("okp:BonCommande.duree", "new duree");
            properties.put("okp:BonCommande.observations", "new observations");
            properties.put("okp:BonCommande.avisarchiviste", "new avisarchiviste");

            // Date fields must be saved with basic ISO 8601 format
            properties.put("okp:BonCommande.date", ISO8601.formatBasic(Calendar.getInstance()));
            OKMPropertyGroup.getInstance().setPropertiesSimple(null, "/okm:root/logo.pdf","okg:BonCommande", properties);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

	@Override
	public void execute(ExecutionContext arg0) throws Exception {
		// TODO Auto-generated method stub
	}
}
Attachments

jllort
Moderator
Moderator
Posts: 11204
Joined: Fri Dec 21, 2007 11:23 am
Location: Sineu - ( Illes Balears ) - Spain
Contact:

Re: How to call a java class in my workflow?

Post by jllort »

Try with the code below:
package com.openkm.workflow.ged;

Code: Select all

import org.jbpm.graph.def.ActionHandler;
import org.jbpm.graph.exe.ExecutionContext;

import java.util.Calendar;
import java.util.HashMap;
import java.util.Map;

import com.openkm.api.OKMPropertyGroup;
import com.openkm.util.ISO8601;
public class metadonneesinsert implements ActionHandler {
 private static final long serialVersionUID = 1 L;


 @Override
 public void execute(ExecutionContext arg0) throws Exception {
  try {
   Map < String, String > properties = new HashMap < > ();
   properties.put("okp:BonCommande.direction", "new direction");
   properties.put("okp:BonCommande.civilite", "new civilite");
   properties.put("okp:BonCommande.Ordonnateur", "new Ordonnateur");
   properties.put("okp:BonCommande.document", "new document");
   properties.put("okp:BonCommande.justificatif", "new justificatif");
   properties.put("okp:BonCommande.description", "new description");
   properties.put("okp:BonCommande.duree", "new duree");
   properties.put("okp:BonCommande.observations", "new observations");
   properties.put("okp:BonCommande.avisarchiviste", "new avisarchiviste");

   // Date fields must be saved with basic ISO 8601 format
   properties.put("okp:BonCommande.date", ISO8601.formatBasic(Calendar.getInstance()));
   OKMPropertyGroup.getInstance().setPropertiesSimple(null, "/okm:root/logo.pdf", "okg:BonCommande", properties);
  } catch (Exception e) {
   e.printStackT
  }
 }
Consider to play with JAVA in OpenKM you should have at least 3 years of expertice.

kouadio
Senior Boarder
Senior Boarder
Posts: 73
Joined: Wed Jan 09, 2019 9:26 am

Re: How to call a java class in my workflow?

Post by kouadio »

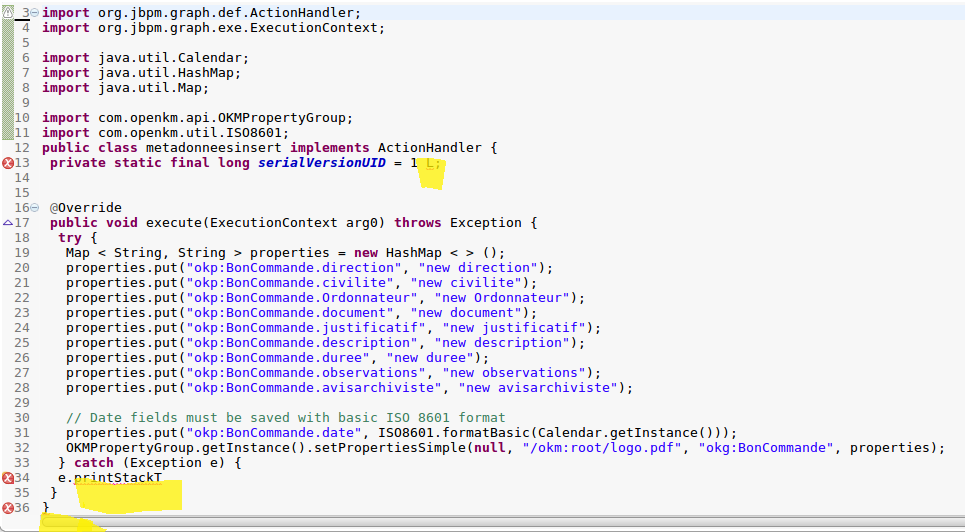

When I copy and paste the code in eclipse window, I get three (03) errors as shown in the image below:
Attachments

jllort
Moderator
Moderator
Posts: 11204
Joined: Fri Dec 21, 2007 11:23 am
Location: Sineu - ( Illes Balears ) - Spain
Contact:

Re: How to call a java class in my workflow?

Post by jllort »

Sorry, but sincerely if you are not able to solve these errors yourself you do not have minimal knowledge to play with the JAVA workflows. I thin you have 2 options:
1- try to find somebody more skilled with JAVA
2- in the forum were freelance people what might help you on it ( viewtopic.php?f=5&t=23156&p=49549&hilit=saul#p49549 )
