 #25812  by mohan

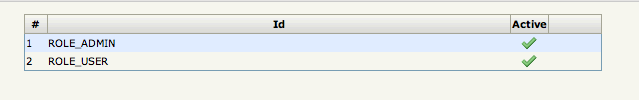

I am not able to create new roles ,please find below screen shot
and please let me know how to modify existing user to assign them to a new role.
Attachments
Screen Shot 2013-10-07 at 8.00.16 PM.png
Screen Shot 2013-10-07 at 8.00.16 PM.png (9.17 KiB) Viewed 4303 times
 #25846  by jllort

Have you configured OpenKM to connect to ldap ? Which openkm version are you using ?
 #25849  by mohan

I am using openKM 6.2.3 Tomcat bundle and here below is my ldap configuration

OpenKM.cfg
Code: Select all
# OpenKM Hibernate configuration values
hibernate.dialect=org.hibernate.dialect.HSQLDialect
hibernate.hbm2ddl=none

principal.adapter=com.openkm.principal.LdapPrincipalAdapter
system.login.lowercase=true
principal.ldap.referral=follow

principal.ldap.security.principal=CN=OpenKM,OU=openkm,dc=dc1,dc=dc2,dc=dc3
principal.ldap.server=ldap url
principal.ldap.security.credentials=password

principal.ldap.mail.attribute=mail
principal.ldap.mail.search.base=dc=dc1,dc=dc2,dc=dc3
principal.ldap.mail.search.filter=(&(objectclass=person)(sAMAccountName={0}))

principal.ldap.role.attribute=cn
principal.ldap.role.search.base=dc=dc1,dc=dc2,dc=dc3
principal.ldap.role.search.filter=(cn=ROLE_*)

principal.ldap.roles.by.user.attribute=memberOf
principal.ldap.roles.by.user.search.base=dc=dc1,dc=dc2,dc=dc3
principal.ldap.roles.by.user.search.filter=(&(objectClass=person)(sAMAccountName={0}))

principal.ldap.user.attribute=sAMAccountName
principal.ldap.user.search.base=dc=dc1,dc=dc2,dc=dc3
principal.ldap.user.search.filter=(&(objectClass=user)(objectCategory=person))

principal.ldap.username.attribute=cn
principal.ldap.username.search.base=dc=dc1,dc=dc2,dc=dc3
principal.ldap.username.search.filter=(&(objectClass=person)(sAMAccountName={0}))

principal.ldap.users.by.role.attribute=member
principal.ldap.users.by.role.search.base=dc=dc1,dc=dc2,dc=dc3
principal.ldap.users.by.role.search.filter=(&(objectClass=group)(cn={0}))

principal.ldap.users.from.roles=false
OpenKM.xml
Code: Select all
<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xmlns:beans="http://www.springframework.org/schema/beans"
             xmlns:security="http://www.springframework.org/schema/security"
             xmlns:task="http://www.springframework.org/schema/task"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://www.springframework.org/schema/beans
                                 http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
                                 http://www.springframework.org/schema/security
                                 http://www.springframework.org/schema/security/spring-security-3.1.xsd
                                 http://www.springframework.org/schema/task
                                 http://www.springframework.org/schema/task/spring-task-3.1.xsd">

  <!-- Tasks configuration -->
  <!--
  <task:scheduler id="taskScheduler" pool-size="1"/>
  <task:scheduled-tasks scheduler="taskScheduler">
    <task:scheduled ref="textExtractorWorker" method="work" fixed-delay="60000"/>
  </task:scheduled-tasks>
  <beans:bean id="textExtractorWorker" class="com.openkm.extractor.TextExtractorWorker" />
  -->

  <!-- Security configuration -->
  <security:authentication-manager alias="authenticationManager">
    <security:authentication-provider>
      <security:password-encoder hash="md5"/>
      <security:jdbc-user-service
        data-source-ref="dataSource"
        users-by-username-query="select usr_id, usr_password, 1 from OKM_USER where usr_id=? and usr_active='T'"
        authorities-by-username-query="select ur_user, ur_role from OKM_USER_ROLE where ur_user=?"/>
    </security:authentication-provider>
    <security:authentication-provider ref="ldapAuthProvider" />
  </security:authentication-manager>

  <beans:bean id="contextSource" class="org.springframework.security.ldap.DefaultSpringSecurityContextSource">
    <beans:constructor-arg value="ldap url"/>
    <beans:property name="userDn" value="CN=OpenKM,OU=openkm,dc=dc1,dc=dc2,dc=dc3"/>
    <beans:property name="password" value="password"/>
    <beans:property name="baseEnvironmentProperties">
      <beans:map>
        <beans:entry>
          <beans:key>
            <beans:value>java.naming.referral</beans:value>
          </beans:key>
          <beans:value>follow</beans:value>
        </beans:entry>
      </beans:map>
    </beans:property>
  </beans:bean>

  <beans:bean id="ldapAuthProvider" class="org.springframework.security.ldap.authentication.LdapAuthenticationProvider">
    <beans:constructor-arg>
      <beans:bean class="org.springframework.security.ldap.authentication.BindAuthenticator">
        <beans:constructor-arg ref="contextSource"/>
        <beans:property name="userSearch" ref="userSearch"/>
      </beans:bean>
    </beans:constructor-arg>
    <beans:constructor-arg>
      <beans:bean class="org.springframework.security.ldap.userdetails.DefaultLdapAuthoritiesPopulator">
        <beans:constructor-arg ref="contextSource"/>
        <beans:constructor-arg value="dc=dc1,dc=dc2,dc=dc3"/>
        <beans:property name="groupSearchFilter" value="member={0}"/>
        <beans:property name="groupRoleAttribute" value="cn"/>
        <beans:property name="searchSubtree" value="true" />
        <beans:property name="convertToUpperCase" value="false" />
        <beans:property name="rolePrefix" value="" />
      </beans:bean>
    </beans:constructor-arg>
  </beans:bean>

  <beans:bean id="userSearch" class="org.springframework.security.ldap.search.FilterBasedLdapUserSearch">
    <beans:constructor-arg index="0" value="dc=dc1,dc=dc2,dc=dc3" />
    <beans:constructor-arg index="1" value="sAMAccountName={0}" />
    <beans:constructor-arg index="2" ref="contextSource" />
    <beans:property name="searchSubtree" value="true" />
  </beans:bean>

</beans:beans>
 #25862  by jllort

Was not necessary copy here your ldap configuration. In case you got ldap integration the place to add or remove roles and users is directly your ldap, not openkm. OpenKM acts in read only mode to your ldap do not write. You want a new role ? add in your ldap and you'll see in openkm that's the idea.
