 #43183  by openkm_user

Hi,

Currently we are importing documents through Administration -> Import, but it is very slow and takes days to complete one import. Is there anyway to speed it up? Increasing CPU or RAM helps? Can we do concurrent imports?

Please advice!
 #43196  by jllort

How many files and folders are you uploading.
What is your hardware, CPU, RAM, fast hard disk, VM or dedicated server ?

Finally the import process actually uses a single thread, in some cases for massive imports we have created and specific multi thread process ( but is not trivial and very specific to solve specific customer scenearios ).

I suggest disable the text extractor from crontab task, antivirus ( if you have enabled is also a bad idea while doing a massive import ).
 #43199  by openkm_user

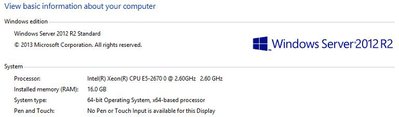

We are importing about 400,000 documents in a batch, in one of our imports it took 5 days to complete 70% only. This is the configuration,
and it's a VM.

I have already disabled text extractor from crontab task, about antivirus is it system.antivir? It has empty string in that property. Please explain more about multi thread process for massive imports.
 #43212  by jllort

You should do some test before going on, and also it depends on the number of cores etc... My suggestion is create a crontab task for it and use several thread for importing documents. The logic might be:
starting from a local folder:
-> Create folders always in the main thread
-> Look for documents into the folder ( list ) and execute the import in a queue.

You can find a crontab sample into https://sourceforge.net/projects/openkmportabledev/ or take a look here https://wiki.openkm.com/index.php/Crontab_xml_importer ( implementation of a crontab task )

Here some classes what can helping you ( obviously you must work on it, it's only an starting point ).

// Approach for document import
Code: Select all
....
public class MigrationParallel {
    public static final int SLEEP_TIME = 100; // 100 milisecconds.
    public static final String FILE_LOG_NAME = "migration-process";
    public static final String FILE_ERROR_LOG_NAME = "migration-error";
    public static final String FILE_LOG_PARALLEL_NAME = "migration-process-parallel";
    public static final String FILE_LOG_PARALLEL_SLEEPING_NAME = "migration-process-sleeping";
    public static Map<String, String> mapUsuarios;
    public static Map<String, String> mapActoNuevaInscripcion;
    public static Map<String, String> mapActoCancelacionJudicial;
    public static Map<String, String> mapActoCancelacion;
    public static int numMaxObjectsQueue = 16;
    public static int parallelThreads = 4; // if you have 4 cores I suggest same number or 4*2 ( you should do some tests to find the good number for your hardware )
    public static long threadExecutionTimeout = 2; // 2 minutes
...
long id = ExecutionQueue.getInstance().getId();
            CorrectionMigrationThread thread = new CorrectionMigrationThread(file, okmDst, id);
            ExecutionQueue.getInstance().doAction(ExecutionQueue.ACTION_ADD, id, thread);

            // Sleep always after adding processes in queue
            int iterations = 0;
            while (ExecutionQueue.getInstance().threadListSize() > MigrationParallel.numMaxObjectsQueue) {
                // Stop until the number of object in queue is less than..
                try {
                    Thread.sleep(MigrationParallel.SLEEP_TIME);
                    iterations++;
                    if (iterations % 10==0) {
                        FileLogger.info(MigrationParallel.FILE_LOG_PARALLEL_SLEEPING_NAME, "Durmiendo "+(iterations*MigrationParallel.SLEEP_TIME)+" milisegundos y en la cola esperando " + ExecutionQueue.getInstance().threadListSize() + " threads");
                    }
                } catch (Exception e) {
                }
            }
....
Approach for import document into thread
Code: Select all
package com.openkm.migracion.logic;

import java.io.File;
import java.util.concurrent.TimeUnit;

import com.openkm.migracion.crontab.MigrationParallel;
import com.openkm.migracion.util.ExecutionQueue;
import com.openkm.util.FileLogger;

/**
 * CorrectionMigrationThread
 *
 * @author jllort
 */
public class CorrectionMigrationThread implements Runnable {
    private File file;
    private String okmDst;
    private long id = 0;
    private String appUrl;

    /**
     * MigrationThread
     */
    public CorrectionMigrationThread(File file, String okmDst, long id) {
        this.file = file;
        this.okmDst = okmDst;
        this.id = id;
    }

    public long getId() {
        return id;
    }

    // Migrate document
    @Override
    public void run() {
        migration(file, okmDst);
    }

    /*
     * Migrate document
     */
    private void migration(File file, String okmDst) {
        try {
            long startTime = System.currentTimeMillis();
            // Do something here
                String timing = "["+ TimeUnit.SECONDS.convert((System.currentTimeMillis()-startTime), TimeUnit.MILLISECONDS) + " seconds]";
                FileLogger.info(MigrationParallel.FILE_LOG_NAME, String.format("%010d", id) + " Processed: , queue="+ExecutionQueue.getInstance().getThreadListIds());

        } catch (Exception e) {
        	// Log Something
            FileLogger.info(MigrationParallel.FILE_ERROR_LOG_NAME, String.format("%010d", MigrationParallel.incrementErrors()) + " Error:XXXX");
        } finally {
            try {
                ExecutionQueue.getInstance().doAction(ExecutionQueue.ACTION_REMOVE, id, null);
            } catch (Exception e) {
                e.printStackTrace();
            }
        }
    }


}

Document import queue
Code: Select all
package com.openkm.migracion.util;

import java.util.HashMap;
import java.util.Map;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import java.util.concurrent.TimeUnit;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import com.openkm.core.DatabaseException;
import com.openkm.migracion.crontab.MigrationParallel;

/**
 * ExecutionQueue
 *
 * @author jllort
 */
public class ExecutionQueue {
    public static final int ACTION_ADD = 1;
    public static final int ACTION_REMOVE = 2;
    public static final int ACTION_CLEAN = 3;
    private static Logger log = LoggerFactory.getLogger(ExecutionQueue.class);
    private Map<Long, Runnable> threadList = new HashMap<Long, Runnable>();
    private static ExecutionQueue dcq = new ExecutionQueue();
    private ExecutorService executor;
    private long id = 1;

    /**
     * getInstance
     */
    public static synchronized ExecutionQueue getInstance() {
        return dcq;
    }

    /**
     * getId
     */
    public synchronized long getId() {
        return id++;
    }

    /**
     * getId
     */
    public synchronized long threadListSize() {
        return threadList.size();
    }

    /**
     * getThreadListIds
     */
    public String getThreadListIds() {
        return threadList.keySet().toString();
    }

    /**
     * add
     */
    public synchronized void doAction(int action, long id, Runnable runnable) throws DatabaseException {
        switch (action) {
            case ACTION_ADD:
                if (executor == null) {
                    executor = Executors.newFixedThreadPool(MigrationParallel.parallelThreads);
                }
                threadList.put(id, runnable);
                executor.execute(runnable);
                break;

            case ACTION_REMOVE:
                threadList.remove(id);
                if (threadList.size() == 0) {
                    if (executor != null) {
                        Thread clean = new Thread() {
                            public void run() {
                                try {
                                    doAction(ACTION_CLEAN, 0, null);
                                } catch (DatabaseException e) {
                                    e.printStackTrace();
                                }
                            }
                        };
                        clean.start();
                    }
                }
                break;

            case ACTION_CLEAN:
                if (threadList.size() == 0) {
                    if (executor != null) {
                        executor.shutdown();
                        log.info("### All threads shutdown requested ###");
                        try {
                            for (int i = 0; !executor.awaitTermination(MigrationParallel.threadExecutionTimeout, TimeUnit.MINUTES); i++) {
                                log.info("### Awaiting for execution pool tasks termination... ({}) ###", i);
                            }
                        } catch (InterruptedException e) {
                            log.warn("### Exception awaiting for dominion pool tasks termination: {} ###", e.getMessage());
                        }

                        //log.info("### All threads have finished ###");
                        threadList.clear();
                        executor = null;
                    }
                }
                break;
        }
    }
}
